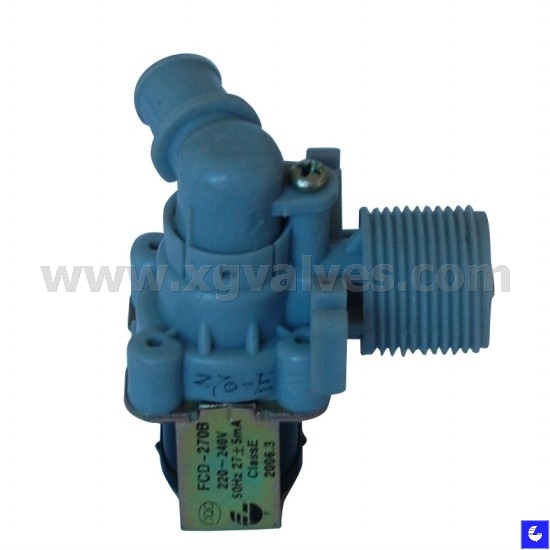

Plastic solenoid inlet valve with special angle

Product name : Plastic solenoid inlet valve with special angle
Item : XGFCD-270B
Details :
Technical parameter and Remark: 1.Environment condition of solenoid valves 1) Elevation height below 2500 meters 2) Temperature between 0 -80°C 3) Relative humidity below 95%(when the temperature is 25°C 2.specification and technical parameter Influent Plug 3/4G,the water plug 16mm customized available 1) Specification: 1way solenoid valves 2) Voltage:DC 3V/6V/12V/24V/36V/110V/220V (can be customized) 3) Electric current:3V-550MA/6V-430MA/12V-300MA/24V-220MA/36V-150MA/110V/220V (can be customized ) 4) Working time:Short working time 5) Insulate grade:The E class insulate 6) Usage fluid:(0-80°C)water 7) Usage water pressure:0.02-1Mpa 8) Operating press (Reference): Operating press (Mpa) 0.02 0.1 0.3 0.8 FLUX standard (L/min) >3 >8 >13 >25 Unit Conversion 1PSI=0.068MPa=0.0703kg/cm2 1MPa=14.696PSI =10.2kg/cm2 =10Bar=9.8atm 9)Working Life:≥100,000 times 3.Transportation and storage 1)Donn’t keep in rain or snow .Keep the box well 2)Storage in well ventilated indoor warehouse,don’t keep in causticity air.
